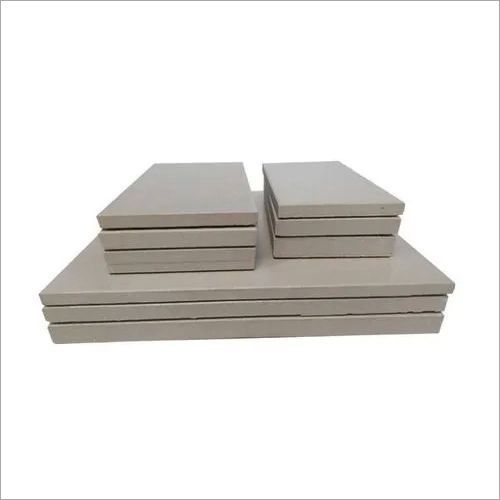

Acid Resistant Tiles
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Tile Type | Ceramic Tiles |
| Tile Finish | Matt |
| Usage | Interior Tiles |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Acid Proof Tiles :-
We are renowned in this domain as one of the prime manufacturers, suppliers and exporters of acid proof tiles. These tiles have been made of supreme quality material that is acquired from the reliable suppliers of the market. With high chemical and thermal resistance, these have earned a high demand among our clients in the global market. Acid Proof Tiles can be availed from us in varied sizes and designs as per the requirements of the clients.
Application Area:-
- Water Treatment Plants
- Battery Rooms
- Paper & Pulp Plants
- Pharmaceutical Ingredients Plants
- Dairy Industries
- Food & Beverages
- Pickling Plants
- Ammonium Sulphate Plants
- Sulfuric Acid Plants
- Phosphoric Acid Plants
Features:-
- Acid/Alkali Resistance
- Scratch Resistant
- Highly abrasion-resistance
- High Flexural strength
- Fire Resistance
- Antiskid
- Easy To clean
- Easy to application & repair
- Low Maintenance
Size
- 200x100x12 MM to 20 MM
- 230x115x12 MM to 20 MM
- 300X300X10 to 20 MM
Application:
- Cement plants,
- Power plant
- Steel plants,
- Chemical Plant,
- Pharmaceuticals,
- Battery Rooms,
- Industrial Flooring,
- Paper Mills,
- Ware House,
- Food Processing Units etc
LAB FACILITY
OUR COMPANY HAS SET-UP A MORDEN TESTING LABORATORY FOR TESTING OF ACID RESISTANCE BRICK AND TILES.
Cold crushing strength testing facility:-
The Cold Crushing Strength (CCS) represents the ability of a product to resist failure under compressive load at room temperature. For the measurement of the CCS, a steadily increasing compressive load is applied to the sample by a compressive machine until the sample fails.We have AIMIL make digital cold crushing strength (CCS)testing machine. Capacity of this machine is up to 3000 KN.
Flexural strength testing facility:-
Flexural strength, also known as modulus of rupture. The flexural strength represents the highest stress experienced within the material at its moment of rupture. The Flexure Strength Testing Machine is designed to test flexural strength of our brick and tiles. We have installed AIMIL make digital flexural strength testing machine. Capacity of this machine is up 100KN.
Weight measurement facility.
We have electrical weight measuring machine for accurate measurement of weight during test of acid resistance loss. Capacity of this machine is up to 200 GM.
Drying Oven:-
Oven is available in laboratory for drying of bricks and tiles during testing of water absorption. We have all instruments which is required for testing of water absorption as per IS 4860 and IS 4457.
Our Acid Resistant Tiles Specifications as per ASTMC279
| SR NO. | PROPERTY | UNIT | OUR TYPICAL VALUE | |
| Type-III | Type-I & II | |||
| 1 | Bulk Density | gm/cc | >2.3 | >2.28 |
| 2 | Water Absorption | % | <1 | <4-6 |
| 3 | Modulus Of Rupture | psi | >1400 | >1300 |
| 4 | Acid Solubility | % | <5 | <10 |
| 5 | Size Tolerance | % | ± 3 | ± 3 |
| 6 | Warpage | MM | 3.2 | 3.2 |
Our Acid Resistant Tiles Specifications as per IS 4457:2007
| SR NO. | TEST DESCRIPITION | IS 4457:2007 | ACID PROOF TILES | ||
| 10&12 MM | 15 MM | 20 MM | |||
| DIMENSION QUALITY | |||||
| 1 | Deviation in Length & Width | + 0.75% | +0.6% | +0.6% | +0.6% |
| 2 | Deviation In Thickness | + 5% | +5% | +5% | +5% |
| 3 | Straightness of sides | + 0.5% | +0.4% | +0.4% | +0.4% |
| 4 | Rectangularity | + 0.6% | +0.5% | +0.5% | +0.5% |
| 5 | Surface Flatness | + 0.5% | +0.3% | +0.3% | +0.3% |
| Physical Properties | |||||
| 1 | Water Absorption | <0.5% | <0.5% | <0.5% | <0.5% |
| 2 | Mohs Hardness | >7 | >7 | >7 | |
| 3 | Flexural Strength ( Avg. MOR) | >35N/mm2 | >38N/mm2 | >38N/mm2 | >38N/mm2 |
| 4 | Breaking Strength | >1300N | >2000N | >4000N | >7500N |
| 5 | Abrasion Resistance /Deep Abrasion |
<175 mm2 | <144mm2 | <144mm2 | <144mm2 |
| 6 | Skid Resistance | >0.4 | >0.6 | >0.6 | >0.6 |
| 7 | Density (gm/cc) | >2 | >2.2 | >2.2 | >2.2 |
| 8 | Moisture Expansion | Nil | Nil | Nil | Nil |
| Chemical Properties | |||||
| 1 | Resistance to Conc. Acid (wt.loss) | <1.5% | <1% | <1% | <1% |
| 2 | Resistance to household Chemical & Swimming Pool Salts |
Resistance | Resistance | Resistance | Resistance |
| 3 | Stain Resistance | Resistance | Resistance | Resistance | Resistance |
| (D)Thermal Properties | |||||
| 1 | Thermal Expansion | <9x10-6K-1 | <9x10-6K-1 | <9x10-6K-1 | <9x10-6K-1 |
| 2 | Thermal Shock Reisitance | No Damage | No Damage | No Damage | No Damage |
